AS3 PERFORMANCE CLUTCH LEVER PIVOT PINS 7MM SHANK 6MM THREAD 24.5MM LONG

AS3 Performance clutch lever pivot pins are supplied in a pack of 3 and come complete with nuts and washers where required. They are manufactured from steel and are a direct fit on a variety of clutch perches, please check the measurements below.

Measurements

• Diameter of shank: 7mm
• Length of shank: 10.5mm
• Diameter of thread: 6mm
• Length of thread: 14mm
• Length from bottom of head to bottom of thread: 24.5mm
• Length from top of head to bottom of thread: 29.3mm
• Thread Pitch: 1.00mm
• Diameter of bolt head: 10mm
• External diameter of nut: 10mm
• External width of nut: 5mm

Features

• Supplied as a pack of 3
• Manufactured from steel
• Supplied with nuts and washer where required

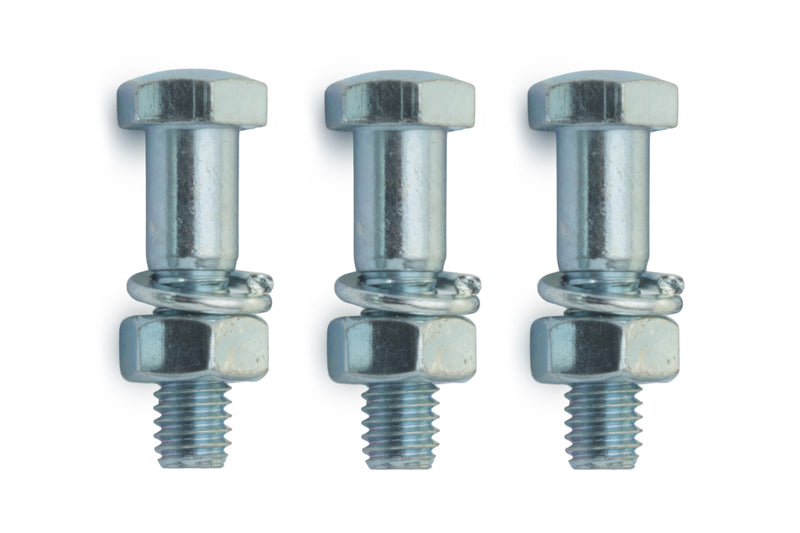

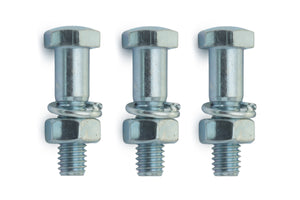

• The pins you will receive will be exactly as pictured
