AS3 PERFORMANCE CLUTCH LEVER PIVOT PINS 8MM SHANK 6MM THREAD 22MM LONG

AS3 Performance clutch lever pivot pins are supplied in a pack of 3 and come complete with nuts and washers where required. They are manufactured from steel and are a direct fit on a variety of clutch perches, please check the measurements below.

Measurements

• Diameter of shank: 8mm
• Length of shank: 12mm
• Diameter of thread: 6mm
• Length of thread: 10mm
• Length from bottom of head to bottom of thread: 22mm
• Length from top of head to bottom of thread: 26.8mm
• Thread Pitch: 1.00mm
• Diameter of bolt head: 10mm
• External diameter of nut: 10mm
• External width of nut: 5mm

Features

• Supplied as a pack of 3
• Manufactured from steel
• Supplied with nuts and washer where required

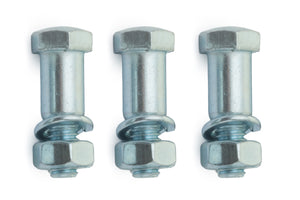

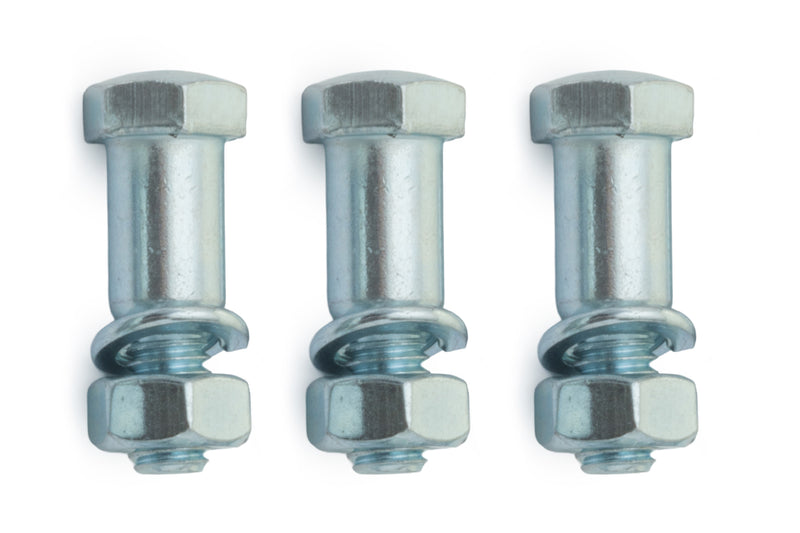

• The pins you will receive will be exactly as pictured
